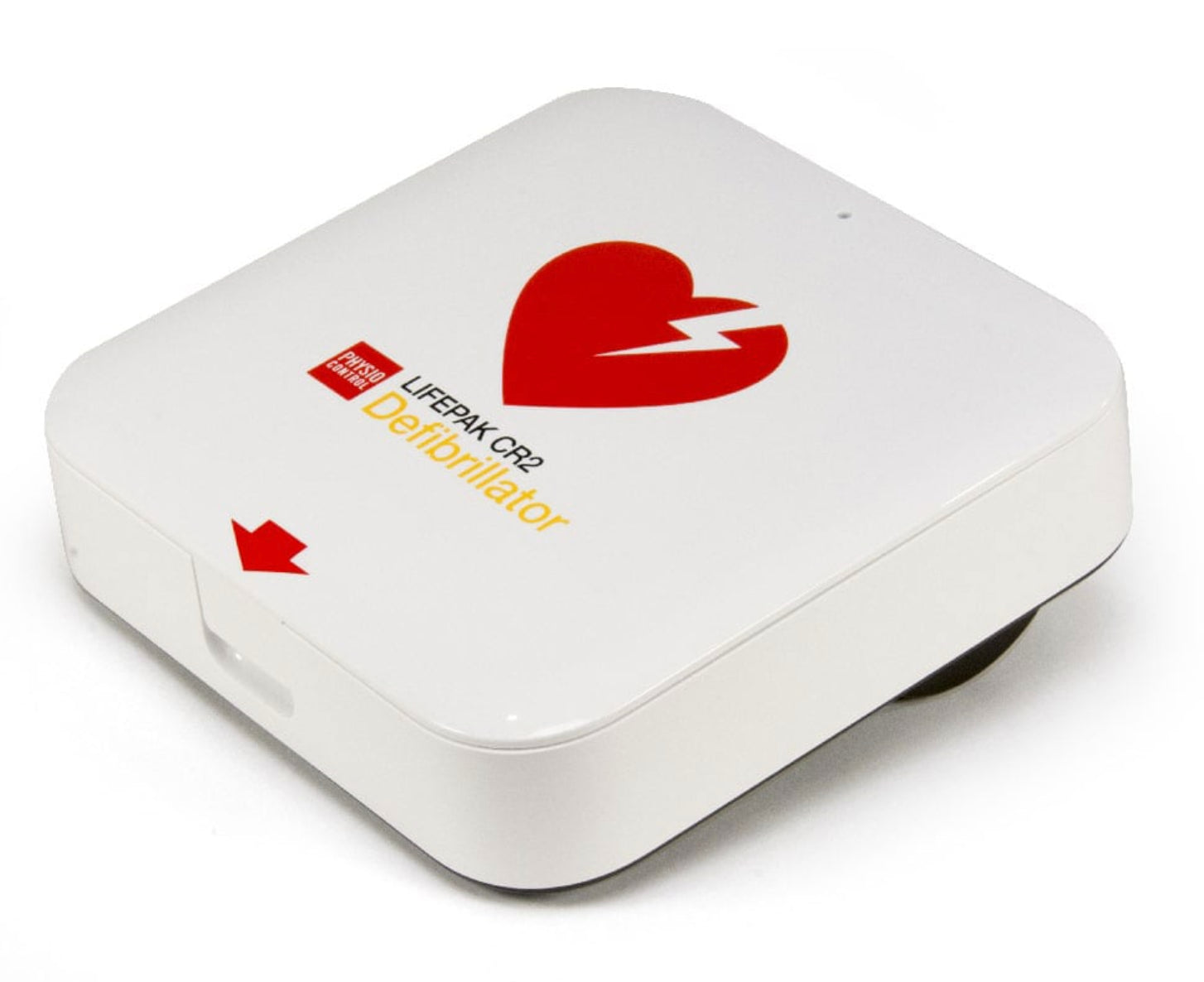

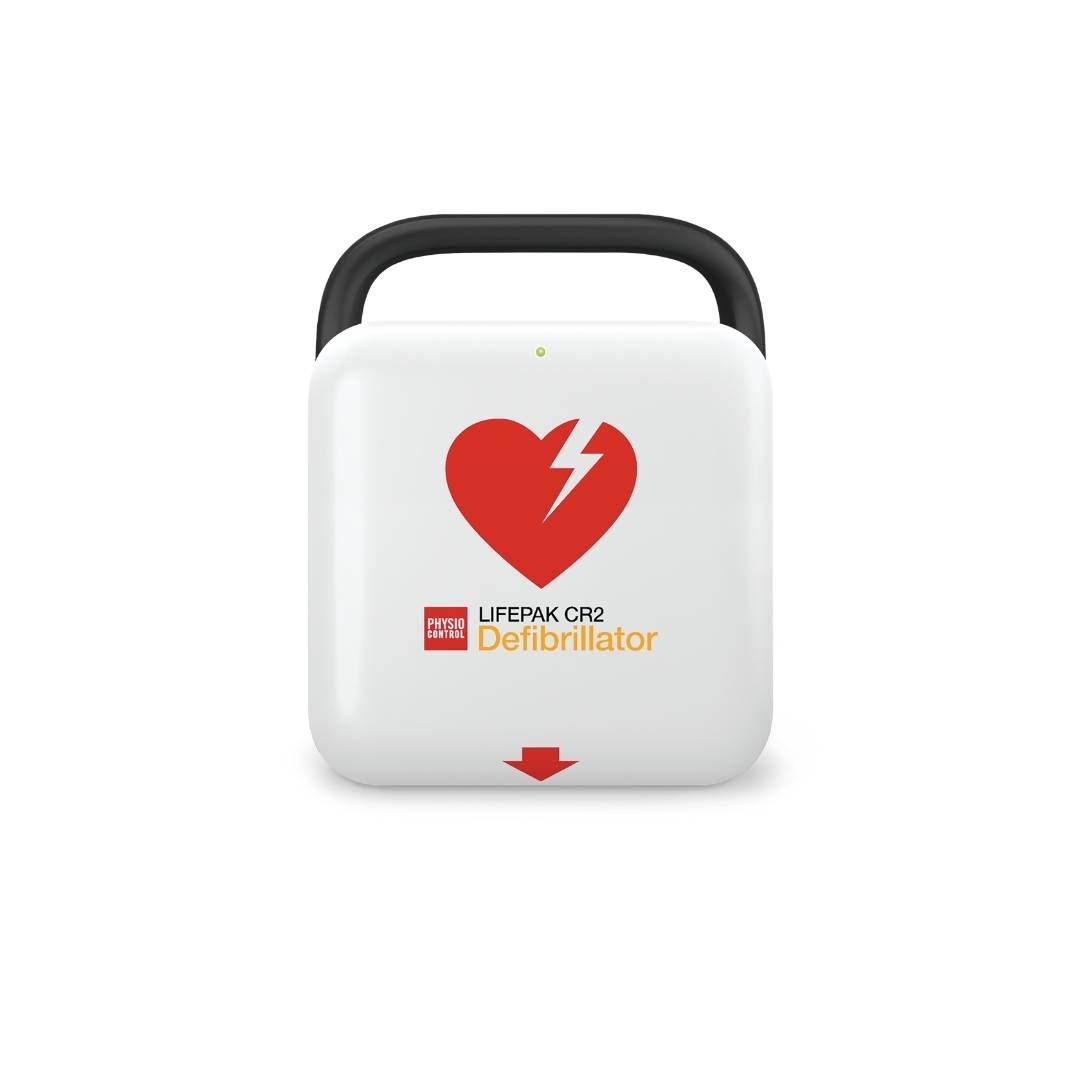

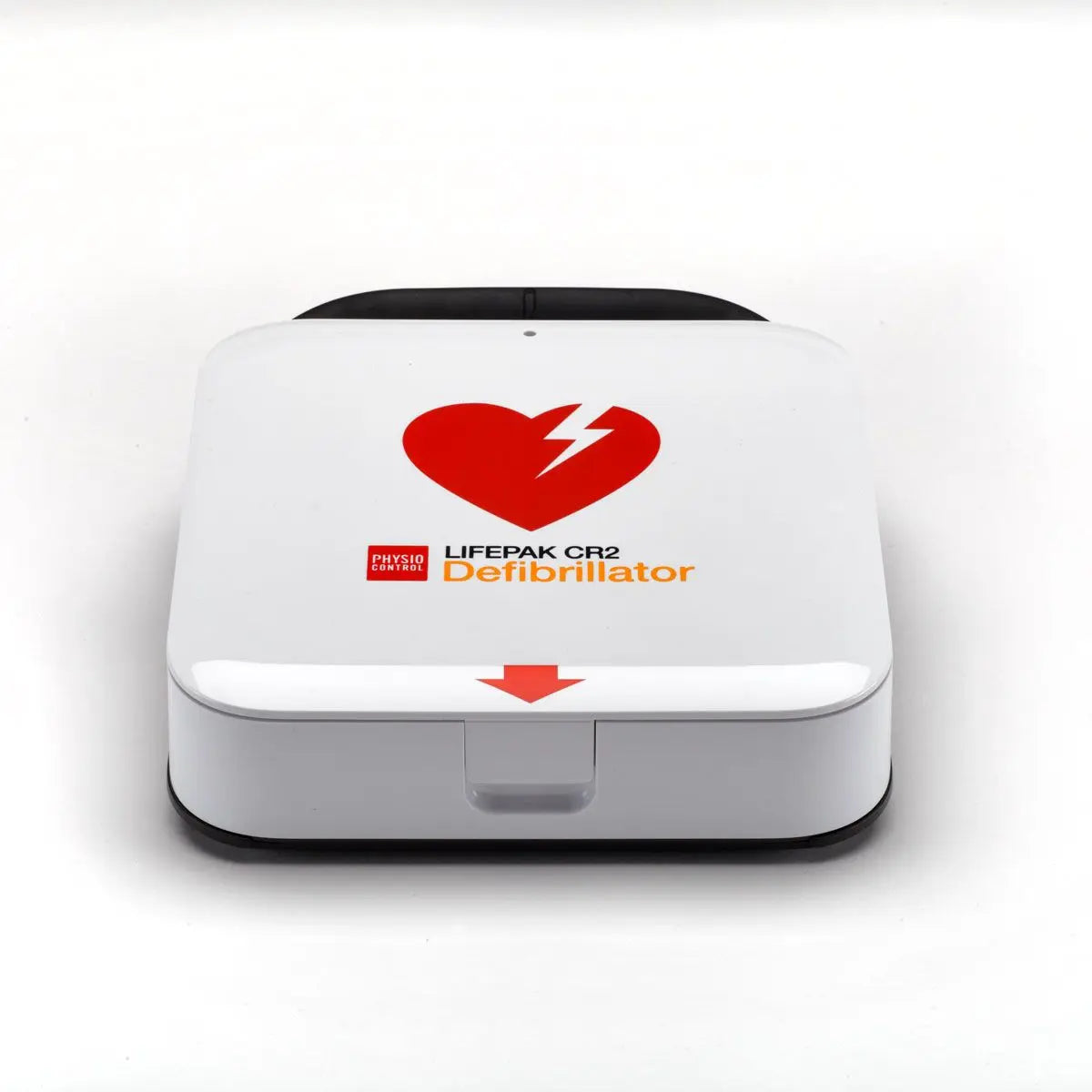

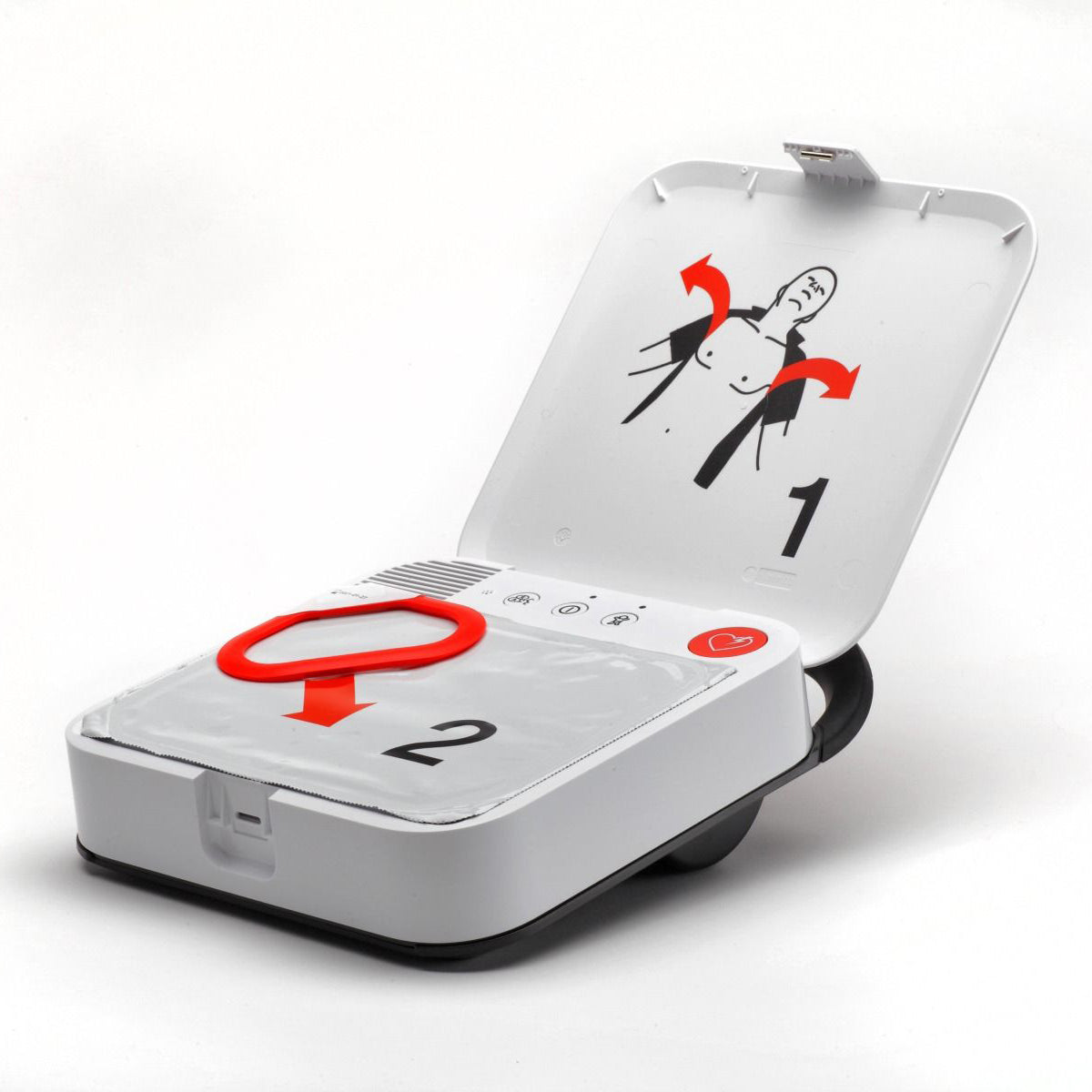

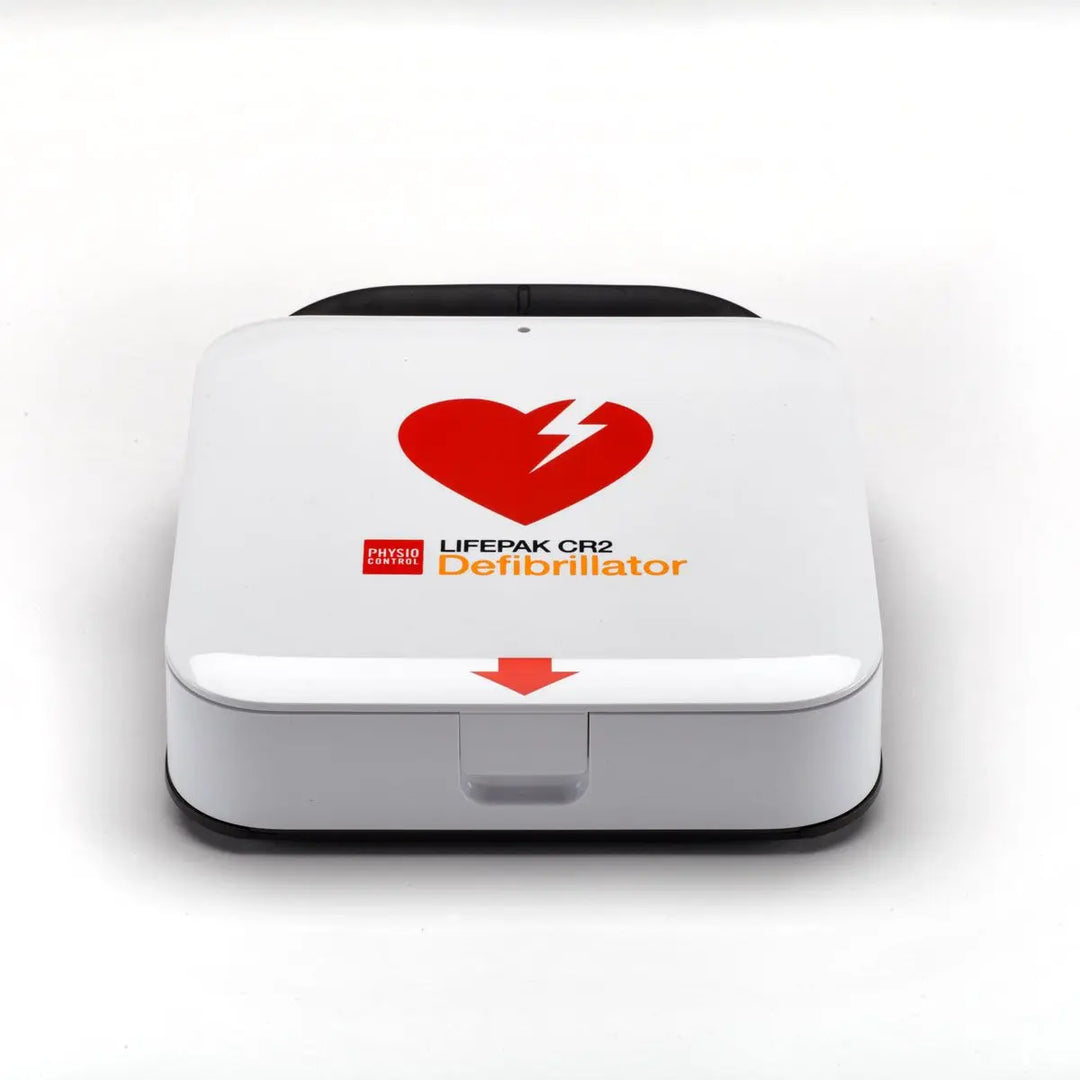

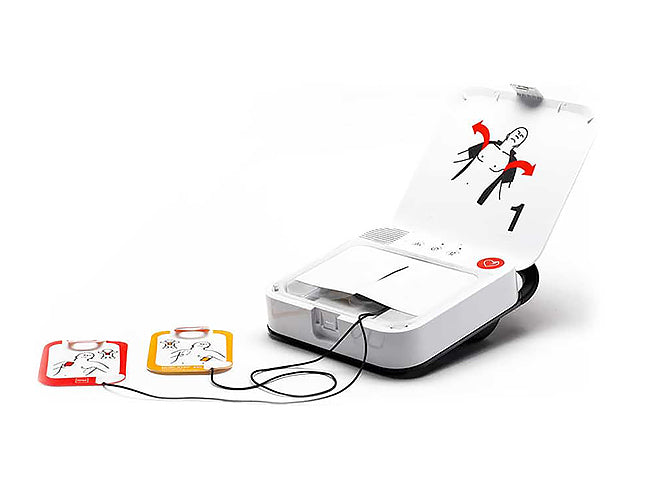

LIFEPAK CR2 Semi-Automatic
The LIFEPAK CR2 Semi-Automatic with USB is a user-friendly AED designed for schools, workplaces, and public-access environments. It provides clear voice and visual guidance, real-time CPR coaching, and escalating shock energy up to 360 J, helping responders act quickly and confidently during sudden cardiac arrest. The Adult & Child Mode allows the same electrode pads to be used for both adults and children.
The USB model offers simple, cost-effective event data transfer without Wi-Fi or cellular connectivity. Rescuers can download ECG recordings, shock information, and event data using the included USB cable, while automatic self-tests and a readiness indicator help ensure the device remains prepared for use.

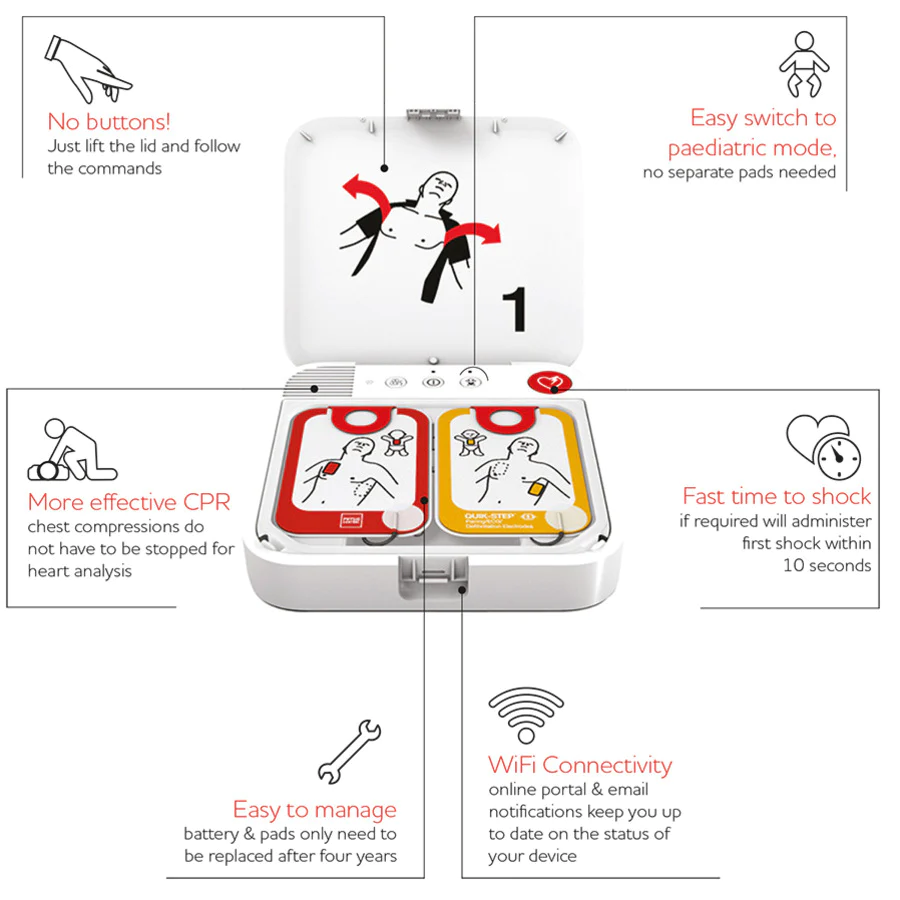

- Step-by-Step Guidance – Clear voice and visual prompts guide responders through each stage of rescue.
- Real-Time CPR Feedback – Provides guidance on compression rate and depth to support effective CPR.
- 360 J Escalating Energy – Automatically delivers increasing shock energy when needed.
- Adult & Child Mode – One set of pads supports both adult and pediatric patients.
-
USB Data Transfer – Easily download rescue data without Wi-Fi, cellular connectivity, or subscriptions.
More AED Brands and Models available. Contact us for further information.
- 1 x US English AED

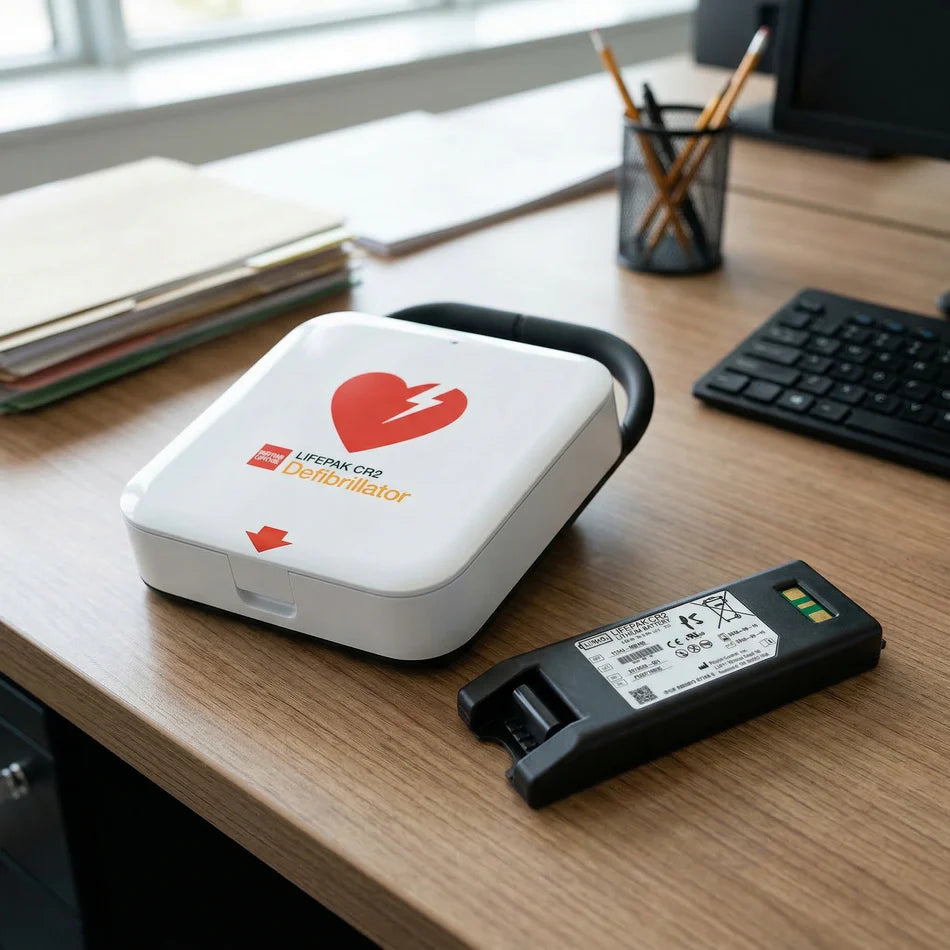

- 1 x IntelliSense Battery
- 1 x set IntelliSense adult defibrillation pads
- 1 x Premium Carry Case 1 Universal Ready Kit
- 1 x AED Manager
- 1 x USB Cable
- 1 x set printed User Guide, Steps to Rescue, Getting Started
- Dimensions: 3.82" × 8.90" × 10.79"
- Weight: 4.4 lb
- Manufacturer: Stryker (formerly Physio-Control)
- Model: LIFEPAK CR2 Semi-Automatic – USB (LP CR2)
- Operation: Semi-automatic (user-initiated shock)
- Connectivity: USB (micro-USB for data transfer)
- Waveform: Biphasic Truncated Exponential with impedance compensation
- Adult Energy: 200J / 300J / 360J (escalating, configurable 150–360J)
- Paediatric Energy: 50J / 75J / 90J (via Child Mode button)
- Time to Shock: < 17 seconds after pads are applied
- First Shock Charge Time: 0 seconds (pre-charged)
- ECG Analysis: Shock Advisory System™
- CPR Feedback: Metronome, rate/depth guidance, and hand placement prompts
- Voice Prompts: ClearVoice™ adaptive volume

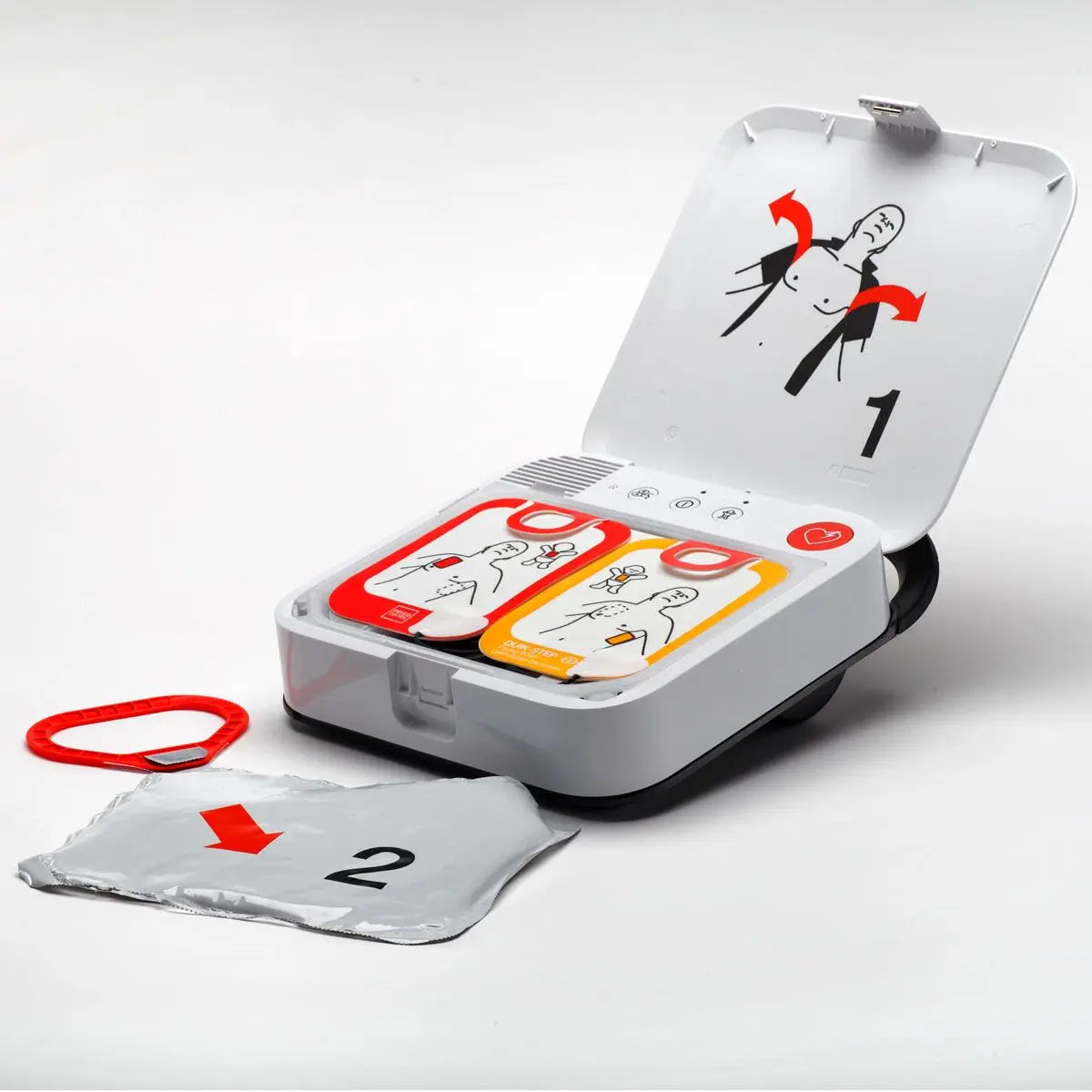

- Electrode Pads: QUIK-STEP™ dual adult/child pads (up to 4-year shelf life)
- Battery: Li/MnO₂, 12.0V, 4.7Ah (166 shocks at 200J or 800 minutes of operating time)
- Battery Standby Life: Up to 4 years (minimum of 6 shocks remaining after first replacement indicator)
- Self-Testing: Automatic daily, weekly, and monthly self-checks
- Readiness Indicator: Green LED flashes every 6 seconds
- IP Rating: IP55 (dust-protected and water-jet resistant)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -30°C to 60°C (recommended long-term: 15°C to 35°C)
- ECG Storage: Minimum 60 minutes across 2 patient episodes (flash RAM)
- Patient Impedance: 10–300 ohms
- Humidity: 5–95% non-condensing
- Safety Standard: IEC 60601-1 / EN 60601-1
- Shock & Vibration: IEC 60068-2-27 (40g, 11ms) / MIL-STD-810G
- Compliance: UKCA, UK MDR, FDA Cleared
Part Number: 99512-001435
