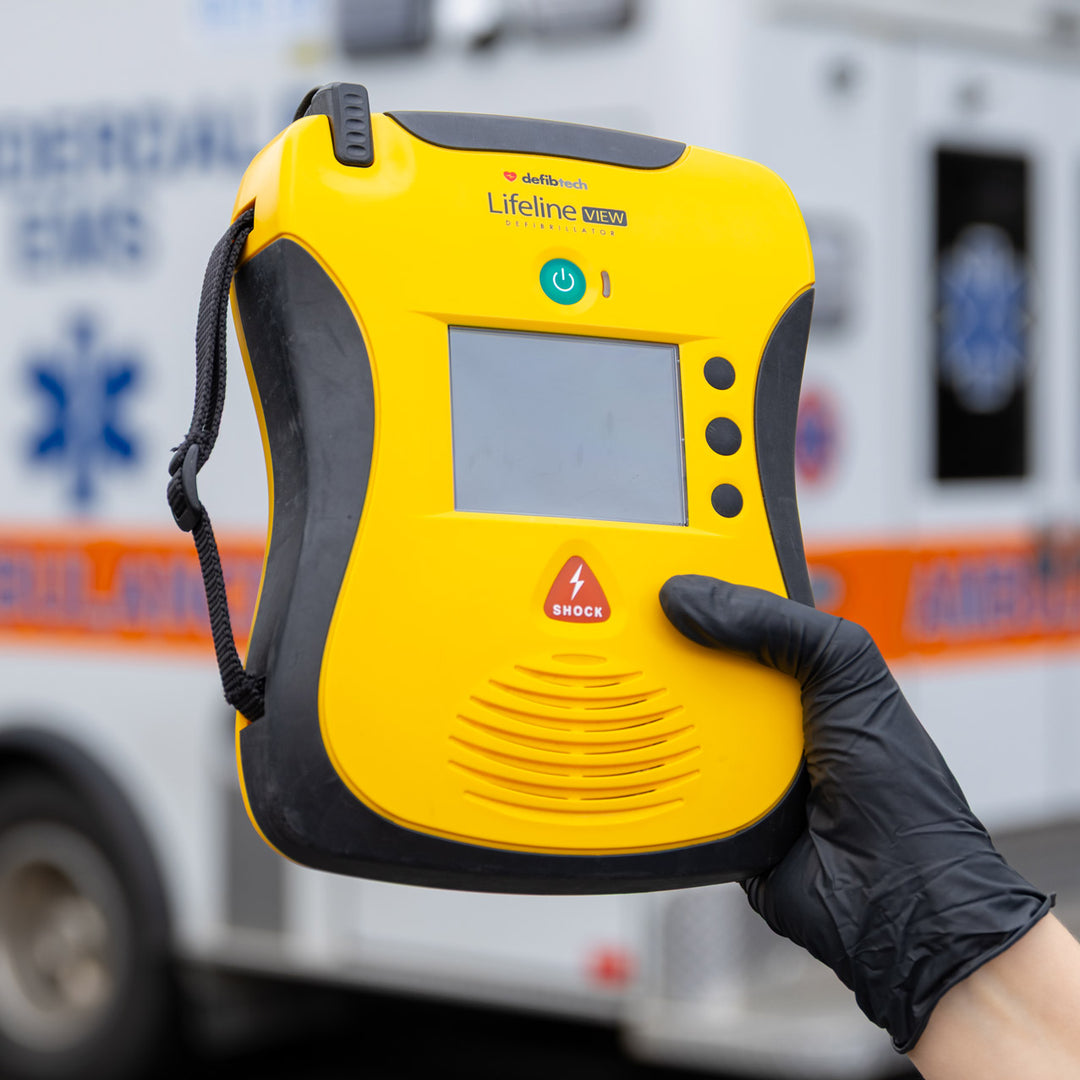

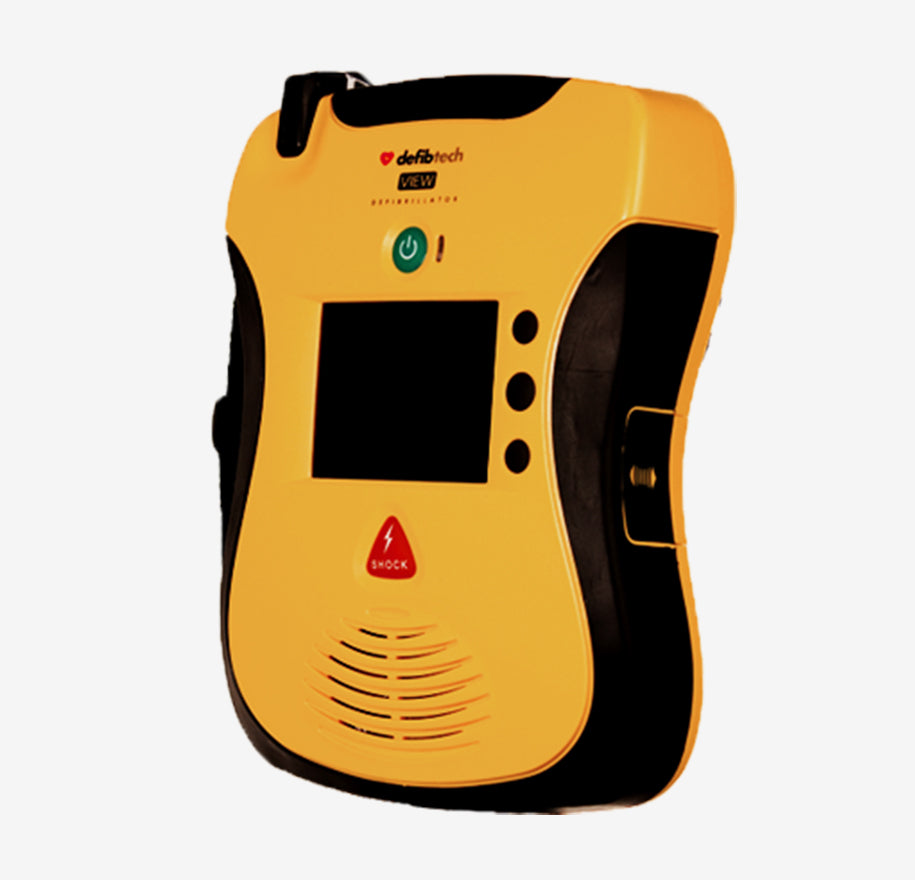

Defibtech Lifeline VIEW
Easiest AED to Use
- Full-color interactive video provides step-by-step rescue instructions.
- Clear visual prompts help guide even first-time responders.
- Rugged, dependable design for demanding environments.
- Great for community centers, hotels, offices, and public buildings.

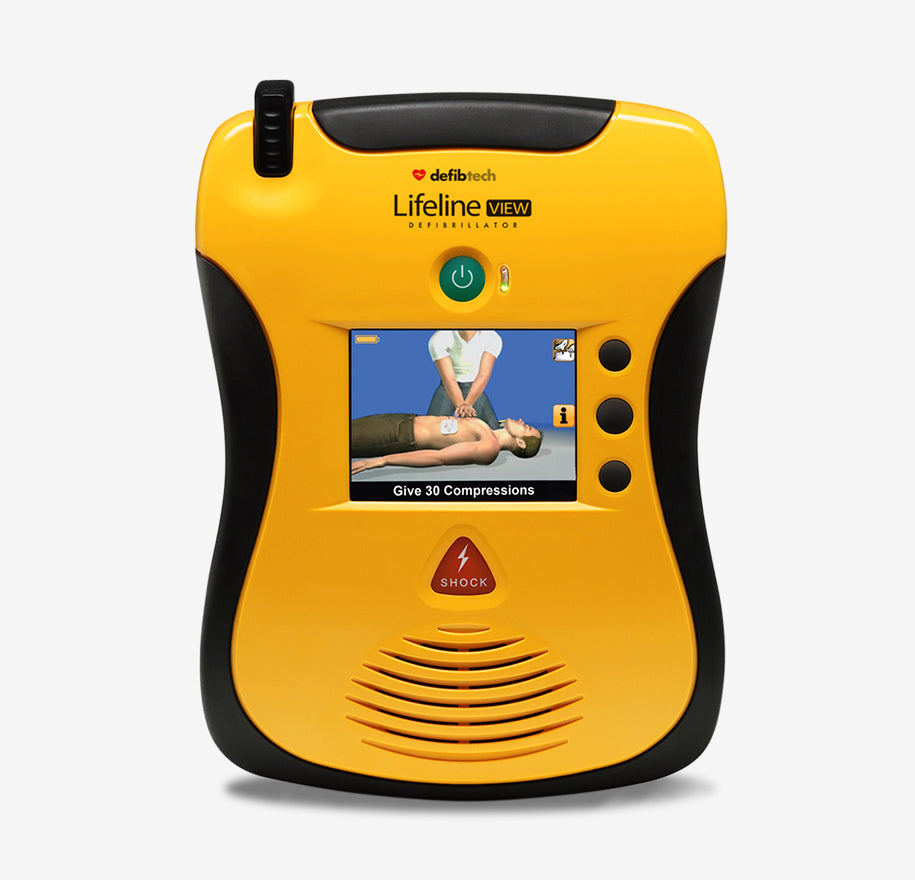

- Real-Time CPR Coaching – Provides CPR instructions with a built-in metronome to help deliver effective chest compressions.
- Fast, Effective Defibrillation – Uses impedance-compensated biphasic technology with 150 J adult and 50 J pediatric shock energy.
- Durable & Rescue-Ready – IP55-rated construction with automatic self-tests ensures the AED is ready when needed.

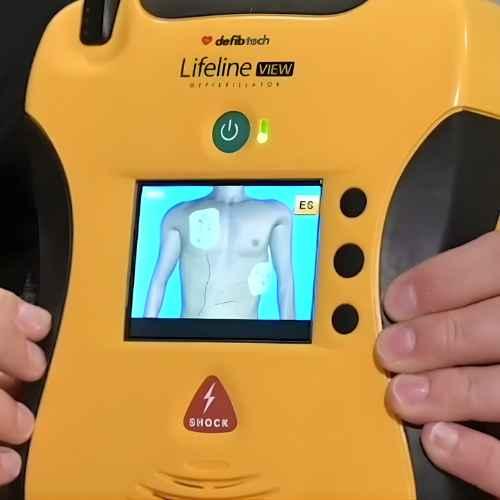

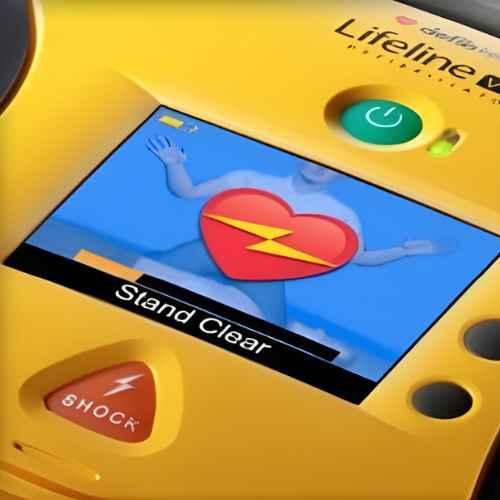

The Defibtech Lifeline VIEW AED is a semi-automatic defibrillator that uses a full-color display with step-by-step video, voice, and text prompts to guide rescuers through every stage of a cardiac emergency. Its intuitive design makes it easy to use for both trained responders and first-time users.
Lightweight, durable, and IP55-rated, the Lifeline VIEW AED features automatic self-testing, CPR coaching, and proven biphasic defibrillation technology. It's an ideal choice for schools, workplaces, healthcare facilities, public spaces, and community organizations.
- 1 × Defibtech Lifeline VIEW AED (Semi-Automatic)

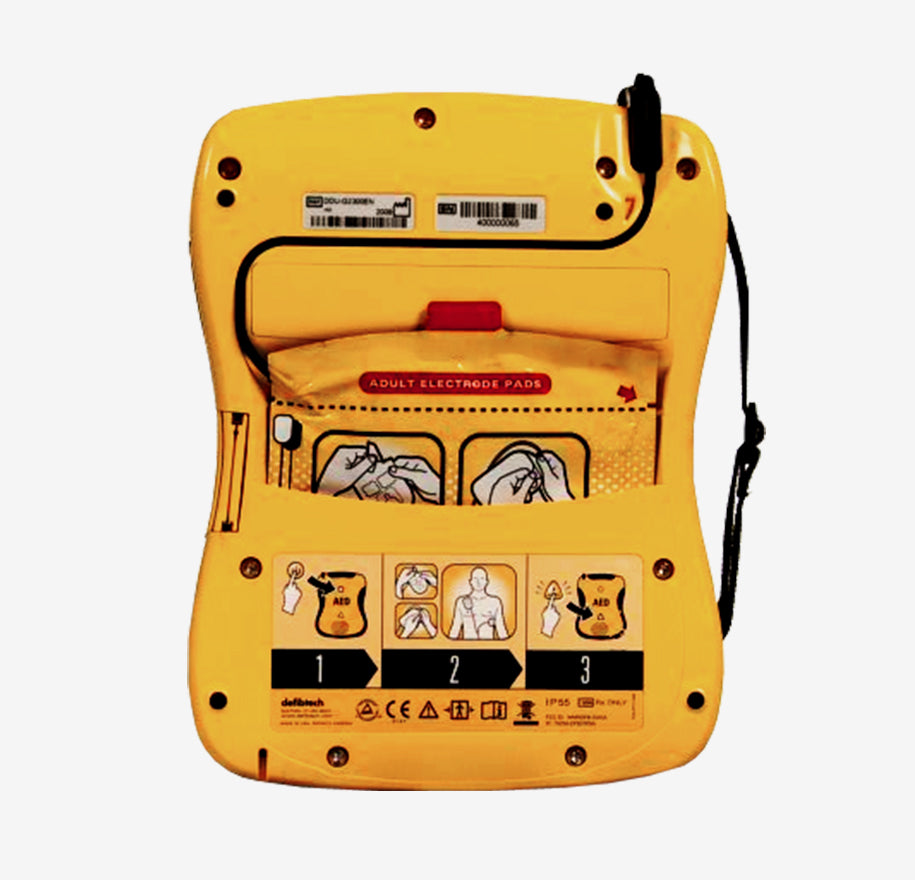

- 1 × Adult Defibrillation Electrode Pad Set (Pre-connected)
- 1 × Battery Pack
- 1 × User Manual
- 1 × Quick Reference Rescue Card
- 1 × 9V Battery (if included with configuration)

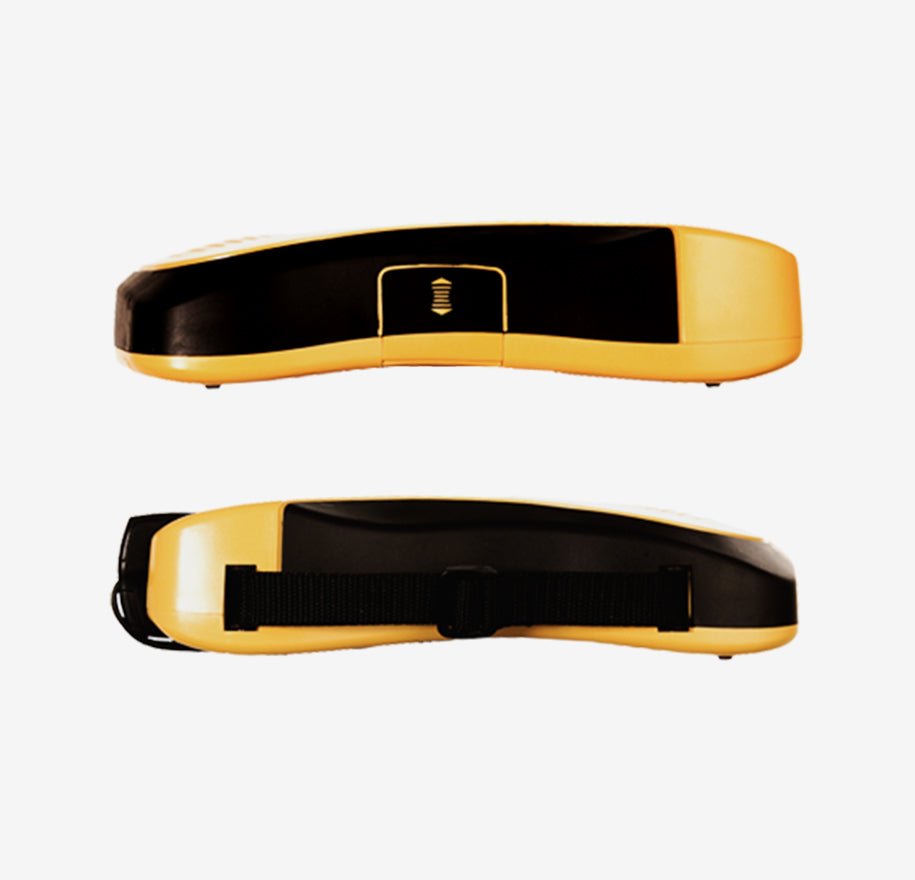

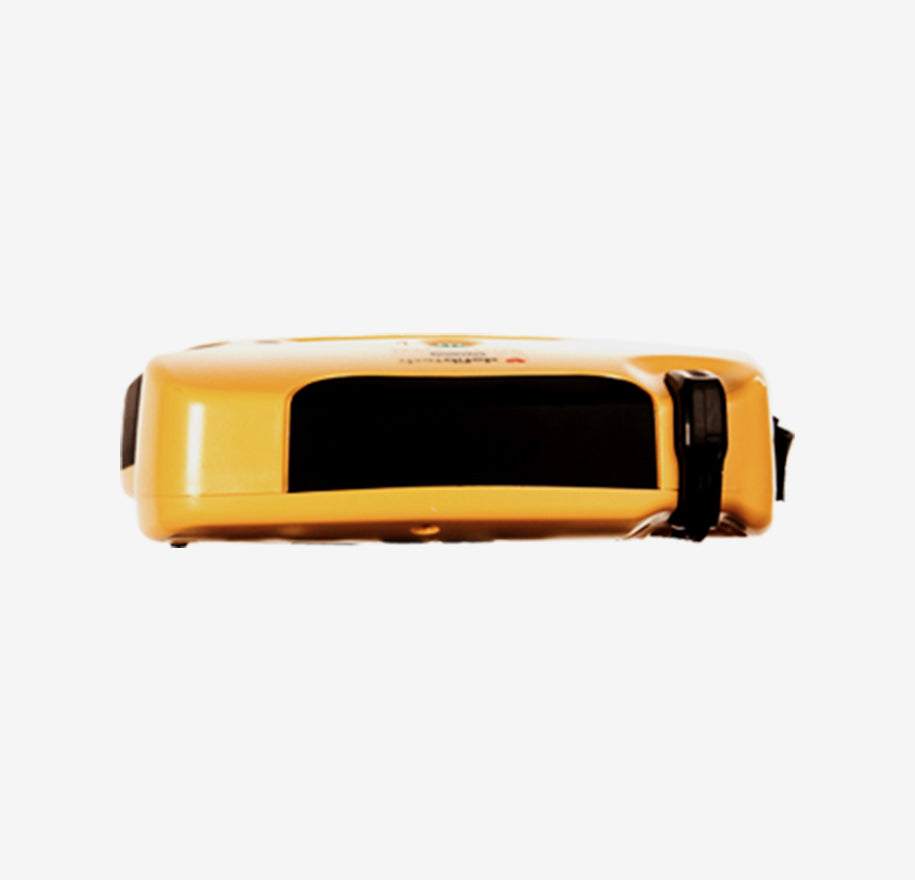

- Dimensions: 7.3" × 9.5" × 2.3"

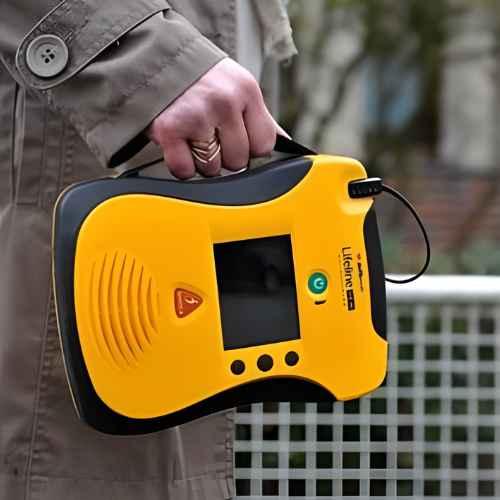

- Weight: Less than 3 lb with battery
- Manufacturer: Defibtech
- Model: DDU-2300
- Device Type: Semi-automatic External Defibrillator (AED)
- Waveform: Biphasic Truncated Exponential (impedance compensated)
- Energy Output: 150 J (Adult), 50 J (Child/Infant)
- Charge Time: Less than 4 seconds

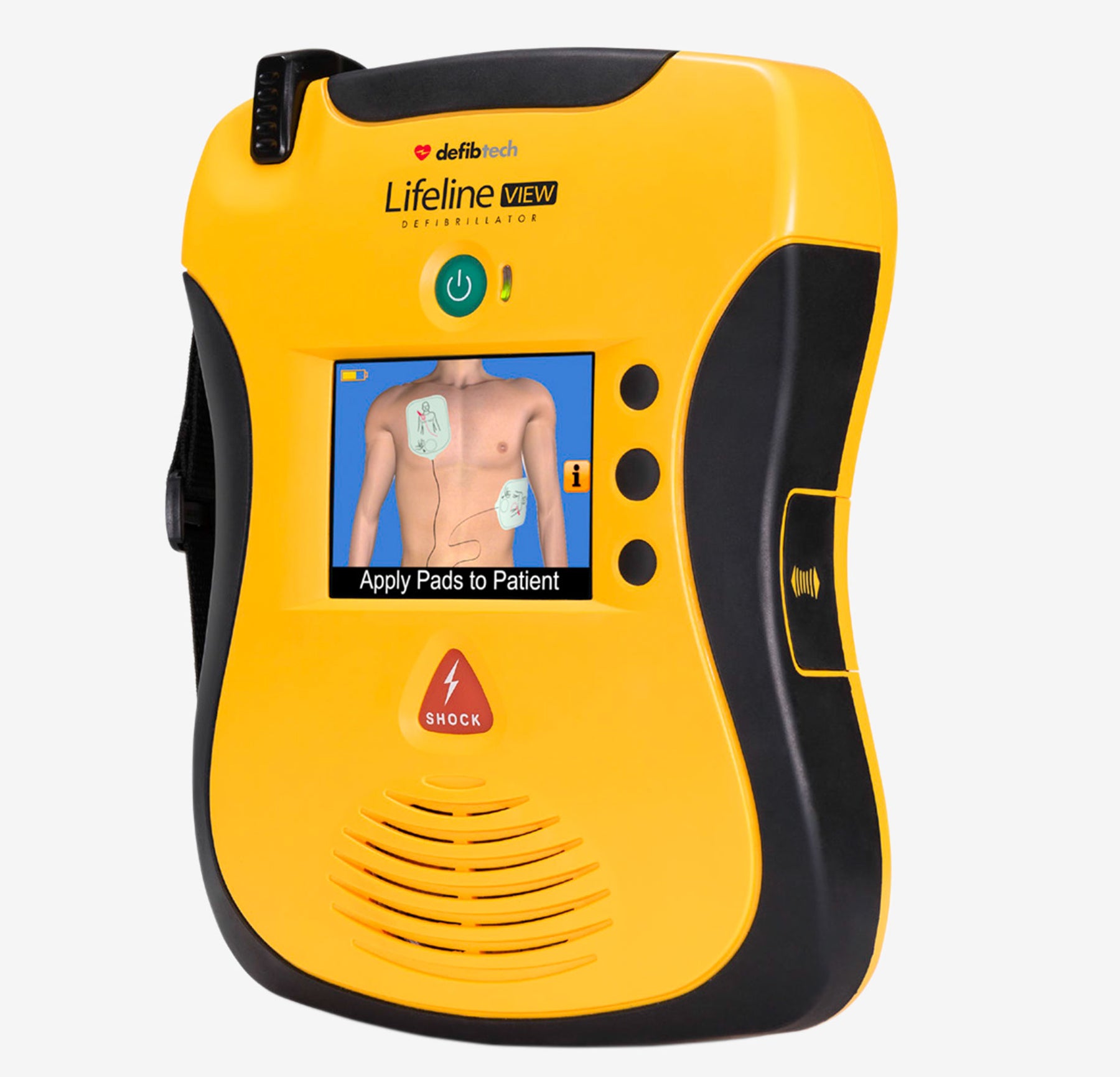

- Display: High-resolution color LCD with full-motion video and text prompts
- CPR Guidance: Real-time video and voice coaching with on-demand assistance
- Voice Prompts: Step-by-step spoken rescue instructions
- Rescue Protocols: AHA/ERC compliant with user-updatable protocols (password protected)
- Patient Analysis: Automatic ECG analysis with pad contact and signal quality monitoring
- Rhythm Detection: Identifies shockable and non-shockable heart rhythms
- Standards Compliance: Meets IEC 60601-2-4, AAMI DF80, and AHA recommendations
- Battery Type: Disposable Lithium/Manganese Dioxide
- Battery Models: DBP-2003 (Standard), DBP-2013 (Aviation)
- Battery Capacity: Up to 125 shocks or 8 hours of continuous operation
- Battery Voltage: 12V, 2800 mAh
- Self-Testing: Automatic daily, weekly, monthly, and quarterly diagnostics
- Status Indicators: Audible and visual readiness, battery, pad, and self-test status
- Electrode Pads: Pre-connected, non-polarized, single-use, self-adhesive pads
- Pad Models: DDP-2001 (Adult), DDP-2002 (Child/Infant)
- Event Recording: Stores over 60 minutes of ECG and rescue event data
- Data Export: USB and removable data card support
- Storage Capacity: Up to 30 hours of ECG/event data or 3 hours of audio (optional)
- Operating Temperature: 32°F to 122°F
- Standby Temperature: 32°F to 122°F
- Cold Temperature Limit: Operates for 1 hour at -4°F
- Humidity Range: 5%–95% non-condensing
- Operating Altitude: -500 to 15,000 ft
- Drop Resistance: Survives drops from 48 in onto any edge, corner, or surface
- Water & Dust Rating: IP55 (dust protected and water jet resistant)
- EMC Compliance: CISPR 11 Group 1 Class B, FCC Part 15
- ESD Protection: Up to 15 kV air discharge / 8 kV contact discharge
Part Number: DCF-A2310EN
